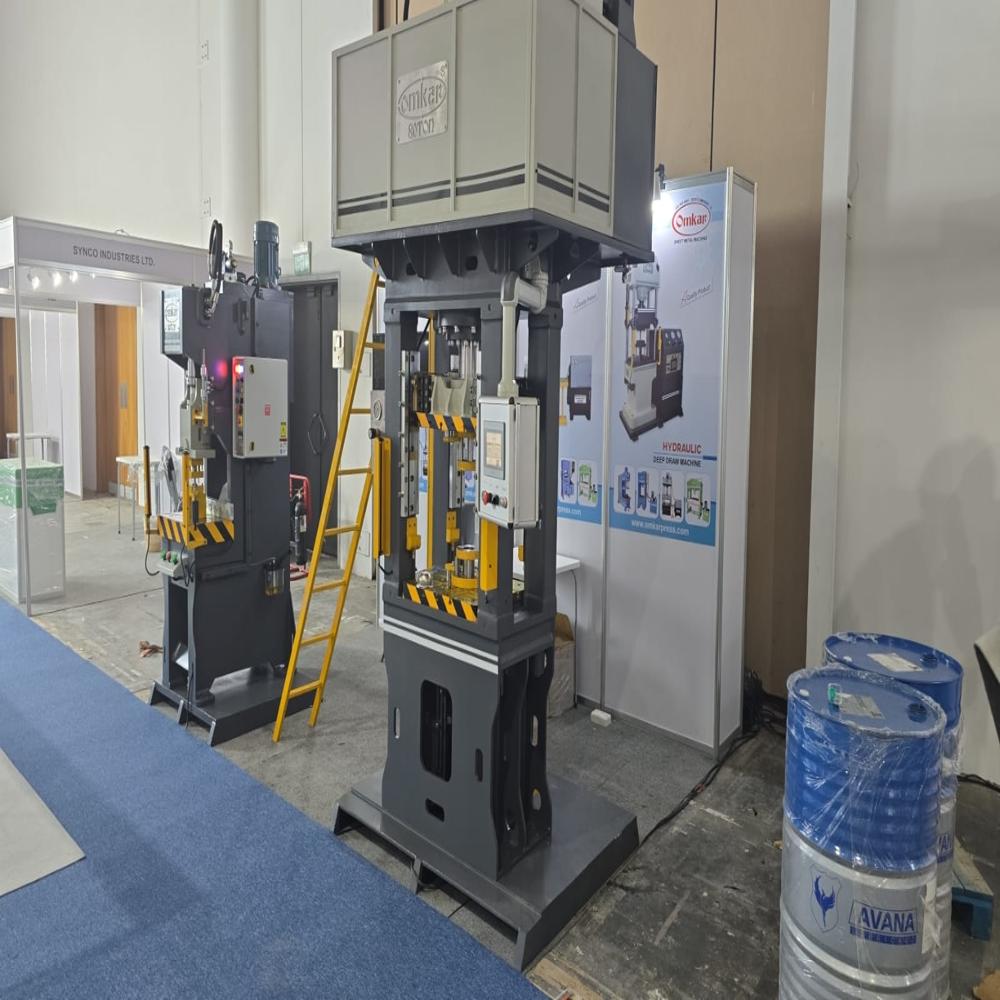

hydraulic deep drawing press

Name: hydraulic deep drawing press
Brand: Omkar Machine Tools Private Limited
Price: 3500000.0 INR
Availability: InStock

Price 3500000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

hydraulic deep drawing press Specification

Nominal Force
100 Ton (Customizable)

Power Source
Electric

Condition
New

Dimension (L*W*H)
2200 x 1200 x 2500 mm

Power(W)
7500 W

Voltage
380V/415V (As per requirement)

Motor
7.5 kW, 3 Phase

PLC System
Available

Solenoid Valve
Available

Pre-Fill Valve
Available

Proportional Valve
Yes (Optional)

Pressure Gauge
Yes

Max Opening Distance
600 mm

Working Table Size
700 x 700 mm (Customizable)

Control Panel
Touch screen HMI with emergency stop

Application
Suitable for deep drawing, pressing, embossing, forming operations

Frame Structure
Four-column type high rigidity steel frame

Oil Tank Capacity
400 Liters

Cooling Method
Oil cooling with heat exchanger

Working Stroke
800 mm

Safety Device
Two-hand operation and safety guards

Slider Speed
10-20 mm/s adjustable

Cylinders
Double acting main cylinder with auxiliary ejector cylinder

Weight
Approx. 5500 kg

Automation Grade
Semi-automatic with programmable cycles

hydraulic deep drawing press About

Experience the resplendent efficiency of our Four Column Hydraulic Deep Drawing Press, acclaimed by industries for its robust, powder-coated structure and digital touch screen HMI control. With a highlighted hydraulic oil tank capacity of 400 liters, this lustrous press ensures optimal performance, driven by a 7.5 kW, 3-phase motor. The bargain combination of semi and automatic automation grades, advanced safety features, and a famed PLC system offers customizable nominal force up to 100 Ton. Designed for automotive, utensils, and industrial applications, this reliable press supports MS, SS, aluminum, and copper sheets with a working table of 700 x 700 mm, making it the sought-after solution for precision deep drawing tasks.

Feature-Rich Hydraulic Deep Drawing Press

This hydraulic deep drawing press stands out with extra features such as an efficient oil cooling system, proportional and solenoid valves, a robust pre-fill valve, and an intuitive digital HMI with PLC integration. Additional attributes include a photoelectric guard safety mechanism and emergency switch, ensuring operator safety. Suited for extensive use in automotive, electrical, utensil, and industrial sectors, it expertly handles MS, SS, aluminum, and copper sheets for a wide variety of demanding applications.

Timely Delivery, Robust Packaging, and Domestic Logistics

Our acclaimed hydraulic press is swiftly dispatched to various domestic markets with reliable logistics partners. Delivery times are tailored to order volumes, ensuring prompt supply based on customer specifications. Each unit is packed with meticulous care in resplendent, secure packaging to preserve its lustrous surface finish and structural integrity during transit. With robust supply ability, we confidently meet urgent as well as large-scale requirements across diverse industries.

FAQ's of hydraulic deep drawing press:

Q: How does the safety system work on the hydraulic deep drawing press?

A: The press features a photoelectric guard and an emergency switch to protect operators during usage. This system monitors movement near the working area and stops operation if any obstruction is detected, ensuring maximum safety.

Q: What materials can be formed using this deep drawing press?

A: This press is suitable for handling mild steel (MS), stainless steel (SS), aluminum, and copper sheets, making it versatile for automotive, electrical, utensil, and industrial component manufacturing.

Q: When can I expect the hydraulic deep drawing press to be delivered?

A: Delivery times depend on order size and custom specifications, but we ensure prompt dispatch once your requirements are finalized, with efficient logistics supporting quick delivery across domestic regions.

Q: Where is this press commonly used?

A: The press is widely utilized in automotive manufacturing, utensil fabrication, electrical component assembly, and other industrial sectors requiring precision metal forming.

Q: What are the benefits of the digital touch screen HMI and PLC system?

A: The digital HMI and PLC enable intuitive control, real-time monitoring, and program customization, offering enhanced process accuracy, repeatability, and ease of operation for operators.
